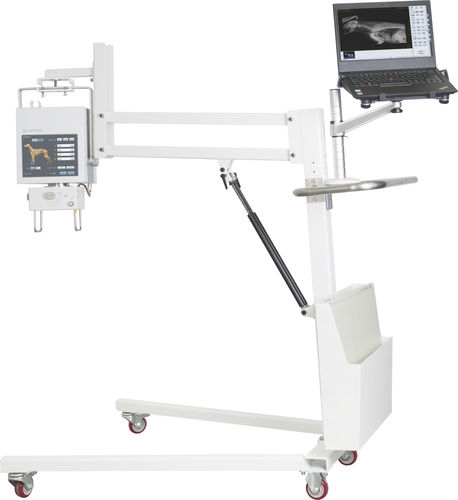

Mobile Digital X-ray System
Description Parameter
Output Power 5.6kw
Input Voltage 220-264VAC
Inverter frequency 200kHz±10%
Rotor Fixed Rotor
ms Range 1 – 10000 ms
Votage Range 40-125kV
Current Range 5 – 100mA
mAs Product 0.1-320 mAs
SID Range 180 cm
Large Focus 1.8 mm
Small Focus 0.6 mm
Anode Angle 15°
Anode Heat Capacity 40.5kHU
APR Number >560
Communication interface Resistive touch screen operation
Screen size 8 inches
Weight 14.5 kg
Size 1300mm*560mm*12200mm
Ease of Transportation
The Keen Ray DR50M is quite light, with a storage box, which makes it easy to be transported.
Flexible Application
The Keen Ray DR50M is flexible and convenient for use, which to maximized meet various of applied occasions and physical positions.
Simple Design
The Keen ray DR50M is designed for simple assemblage, which includes a portable stand with four universal wheels and a suspension assembly head.
Small Occupied Space
The area used and the size of X-ray system are pretty small, which is idealized for storage.
Interactive Design
8′ touch screen with multiple APR can better your using experience.
