Universal operating table OUK-01 (OK-Epsilon)

SKU
Price

Medin+ Universal operating table OUK-01 (OK-Epsilon)

Short description
  • Universal operating table with mechanohydraulic adjustment;
  • Controls located in head section area;
  • Best solution for gynecological and plastic surgery while combined with sets of additional accessories;
  • Warranty 24 months.
Features:
  • All open metal surfaces and additional accessories are made of stainless steel;
  • Table base and column are protected by extra proof composite base covers;
  • Mobile base with Ø100 mm castors and central lock;
  • Removable, antistatic, seamless, molded polyurethane foam mattresses made with antibacterial ASP technology;
  • 5 section table top (with split leg section);
  • Dorsal section bending (optional) 105 mm;
  • Kidney bridge lifting (optional) 140 mm;
  • X-ray translucent table top;
  • C-Arm compatible;
  • Input of the X-ray film cartridge from head or leg sections
  • Head and split leg sections are removable;
  • Compatible with wide variety of additional accessories.



Adjustments:
  • Lifting/lowering of the table top – foot operated hydraulic jack;
  • Trendelenburg/reverse Trendelenburg – gas springs;
  • Lateral tilt – gas springs;
  • Dorsal section, leg and head section tilts – gas springs;

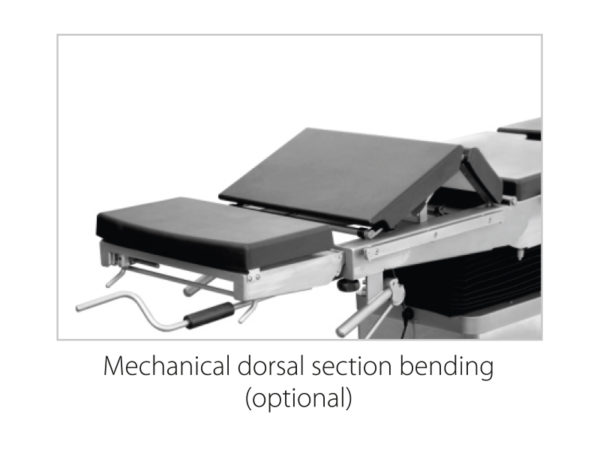

  • Dorsal section bending (optional) – mechanical;
  • Kidney bridge lifting (optional) – mechanical;
  • Brakes control – foot pedal.
Additional options:
  • Dorsal section bending;
  • Kidney bridge lifting;
  • Ring-shaped head cushion Ø205 mm;
  • Lumbar roll cushion.
Operating mechanohydraulic
Table height (without mattresses), mm 710…1010
Table top length, mm 2100+50
Table top width (incl. side rails), mm 550
Table top sections (incl. split leg section) 5
Longitudinal tilt (Trendelenburg/reverse Trendelenburg) ±30˚
Lateral tilt ±20˚
Dorsal section tilt +75˚/-45˚
Leg sections tilt +30˚/-90˚
Head section tilt +30˚/-35˚
Dorsal section bending (optional), mm 105
Kidney bridge lifting (optional), mm 140
Castor size, mm Ø100
Safe working load, kg 160
Table weight (with mattresses), kg 160
