TECHNICAL SPECIFICATIONS
LASER TYPE – TFL (Tulium Fiber Laser)
WAVELENGTH – 1940 nm ± 20 nm
POWER OUTPUT – Nominal max. power Output: 60 W
PULSE ENERGY – 0,02-6J
OPERATING MODE – Pulsed and Continuous modes
PULSE DURATION – Depending on Peak Power 100μs – Continuous
REPETITION RATE – 1-2500Hz
BEAM TRANSMISSION – Optical fibre system
AIMING BEAM – Laser Diode, green 532nm (adjustable) < 5mW, class 3R
COOLING – Air
HOUSING – Tower format
POWER SUPPLY – 100-240 VAC; 50/60Hz; <1.5kVA

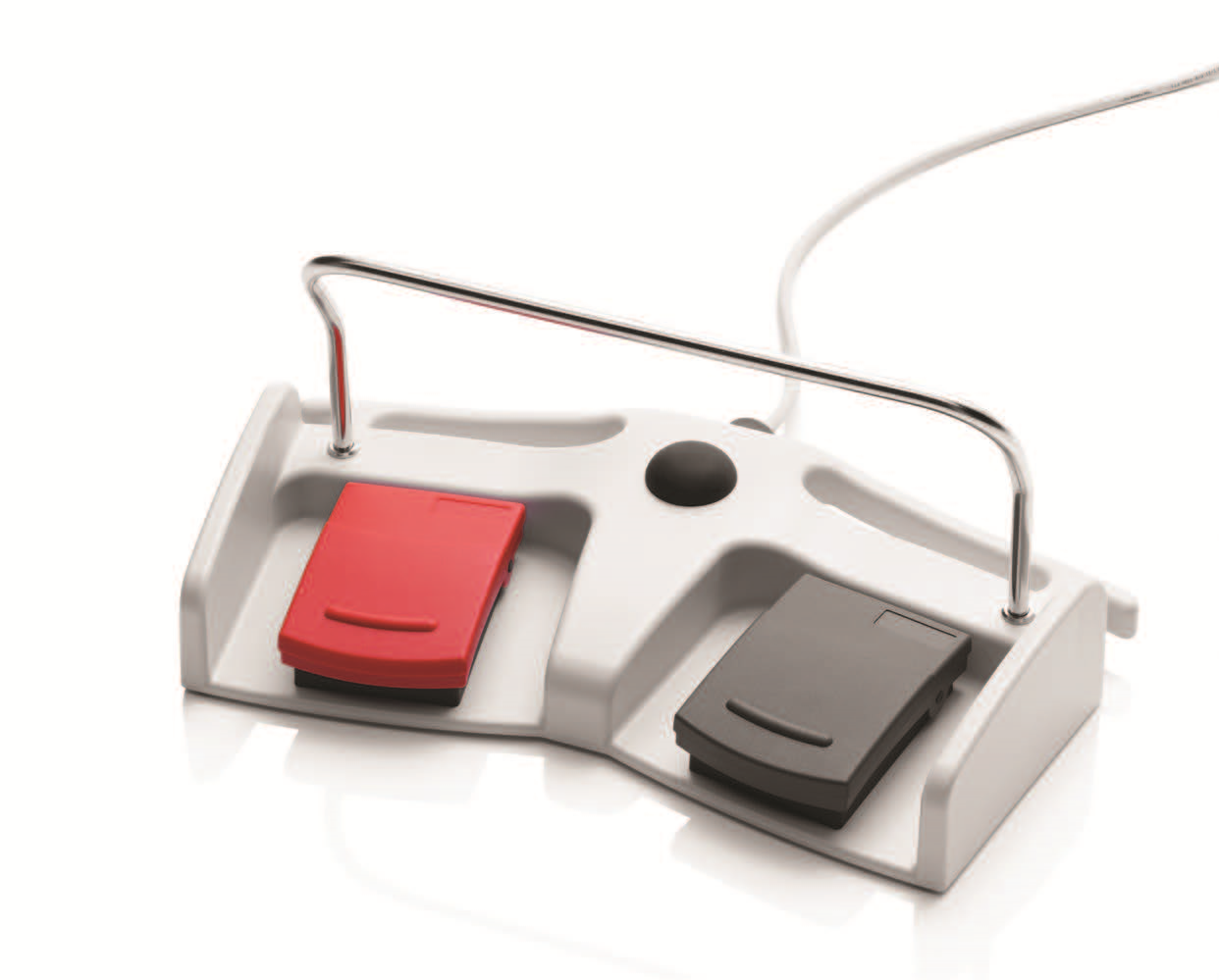

PEDAL – Double footswitch with mode switching
INTERFACE – 7” touch display, 1280×800 resolution
FIBRES – Single use only : 150 μm
Single use and 10x reusable available: 200, 272, 365, 550, 800, and
REFERENCES
LASERCLAST THULIUM POWER
• 1x Foot Pedal
• 2x Set of safety goggles
• 1x Fiber stripper (0.3mm – 1mm)
• 1x Fiber stripper (0.1mm – 0.4mm)
• 1x Fiber cutter
• 1x Interlock connector
• 1x Blast shield
• 4x Fluid bag hook
• 1x Power supply cable
USE SMARTFIBERS (SET OF 5X FIBERS)
REUSABLE SMARTFIBERS (SET OF 5x FIBERS)
