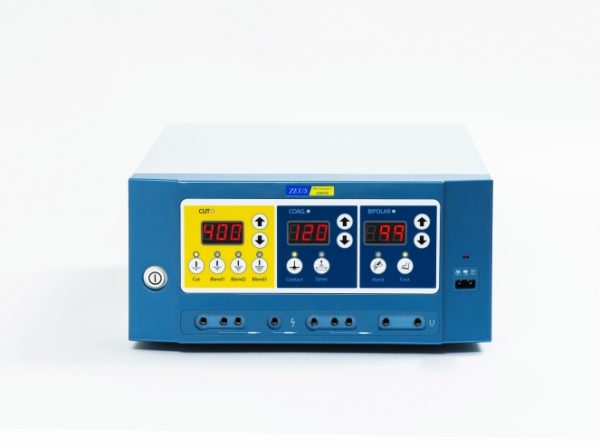

ZEUS-400/300/200 up-graded version is a state of the art technology
electrosurgical unit for universal purpose.
– 5 kinds of cut, bipolar and monopolar coagulation.
– Distinguish each working condition by audio sound and LED lamp.
– Best safety with Feedback system.
REM(Return Electrode Monitoring)monitors the size of contacting area between
a patient and the pad, if the size is inappropriate, it automatically blocks the
high-frequecy current to minimize the danger of burning incidents.
– Stable output power.
Unit can stably and stragithly output power by using micro processor.
When the unit turn it off and turn it back on, last set value will be displayed by
flash memory.
– Available bipolar cut of 100W
– Available 10 memories
| Mode | ZEUS-400 | ZEUS-300 | ZEUS-200 | |
| CUT | Pure cut | 400W / 300Ω | 300W / 300Ω | 200W / 300Ω |
| Blend 1 | 250W / 300Ω | 230W / 300Ω | 150W / 300Ω | |
| Blend 2 | 200W / 300Ω | 180W / 300Ω | 120W / 300Ω | |
| Blend 3 | 150W / 300Ω | 120W / 300Ω | 100W / 300Ω | |
| Coagulation | Contact | 120W / 300Ω | 100W / 300Ω | 100W / 300Ω |
| Spray | 100W / 300Ω | 80W / 300Ω | 80W / 300Ω | |
| Bipolar Coagulation |
100W / 100Ω | 80W / 100Ω | 80W / 100Ω | |
| Bipolar Cut |
100W / 200Ω | 80W / 200Ω | 80W / 200Ω | |
| Main Frequency | 400, 500 KHz | |||
| Power Source | AC120V or AC 230V, 50 / 60 Hz | |||
| Protection Class | Class 1, Type CF | |||
| Dimension(WxDxH) | 330x455x150 mm | |||
| Weight | 13.0 Kg | |||
– CE, ISO13485, KFDA certified.
Accessories
| Image | Code No. | Name | Specification |
|---|---|---|---|
| CT01-01R | Cart | W400xD480xH870(mm) | |
| EL04-04D | Electrode | Needle angled 45˚ 2.4*70mm, Black | |
| EL04-02D | Electrode | Needle 2.4*70mm, Black | |
| EL03-02D | Electrode | Loop 6mm, Black | |
| EL02-02D | Electrode | Ball 5mm, Black | |
| EL01-02D | Electrode | Knife 2.4*70mm, Black | |
| BF03-02R | Bipolar forceps | Angled 17.8cm 1.0 tip | |
| BF03-01R | Bipolar forceps | Angled 9.0cm 0.5 tip | |
| BF02-03R | Bipolar forceps | Straight 17.8cm 1.0 tip | |
| BF02-02R | Bipolar forceps | Straight 12.1cm 1.0 tip | |
| BF02-01R | Bipolar forceps | Straight 9.0cm 0.5 tip | |
| BF01-02R | Bipolar forceps | Bayonet 15.2cm 1.0 tip | |
| BF01-01R | Bipolar forceps | Bayonet 17.8cm 1.0 tip | |
| CA03-01R | Ground cable | Cable 4Ø, 3m | |
| CA02-03R | Patient return plate cable | VelleyLab type plug silicon cable 3m | |
| CA01-03R | Bipolar forceps cable | 2 pin plug silicon cable 3m, EU type connector | |
| CA01-02R | Bipolar forceps cable | 2 pin plug silicon cable 3m, EN type connector | |
| CA01-01R | Bipolar forceps cable | 2 pin plug cable 3m, EN type connector | |
| HD02-01D | Disposable twin button handle | 3 pin plug cable 3m | |
| HD01-02R | Monopolar handle & cable | Silicon cable 4Ø, 3m | |
| HD01-01R | Monopolar handle & cable | Silicon cable 4Ø, 3m | |
| PL03-03D | Disposable patient plate | Pediatric dual(68 cm2) | |
| PL03-02D | Disposable patient plate | Adult dual(131cm2) | |
| PL02-06R | Silicon patient plate | 110mm x 80mm valleyLab type plug cable 2m | |
| PL02-05R | Silicon patient plate | 165mm x 90mm valleyLab type plug cable 2m | |
| PL02-04R | Silicon patient plate | 240mm x 150mm valleyLab type plug cable 3m | |
| ST03-01R | Latex Perforated Strap | 600×1250 mm (WxL), 60 hole | |
| FS02-01R | Double foot switch | 4 pin plug cable 4m | |
| FS01-02R | Single foot switch | 3 pin plug cable 4m |
